Venturi Mask
- Accurate and stable oxygen concentration, able to provide preset oxygen concentration accurately
- High flow gas supply ensures the effectiveness and quality of oxygen inhalation
- Reducing repeated breathing helps maintain normal respiratory function and acid-base balance
- Widely applicable, convenient and flexible to use
Application Department
ent,respiratory medicine
Leave A MessageLive ChatProduct Introduction
Venturi mask is made based on the Venturi principle,which meansthat when oxygen enters the mask through a narrow hole,it createsa negative pressure around the jet airflow,carrying a certain amountof air from the open edge into the mask.The size of the gap on the maskchanges the ratio of air to oxygen.
Structure and composition
Mask body: lightweight transparent plastic, covering the mouth and nose, with exhaust holes on the side.
Venturi valve (key component):

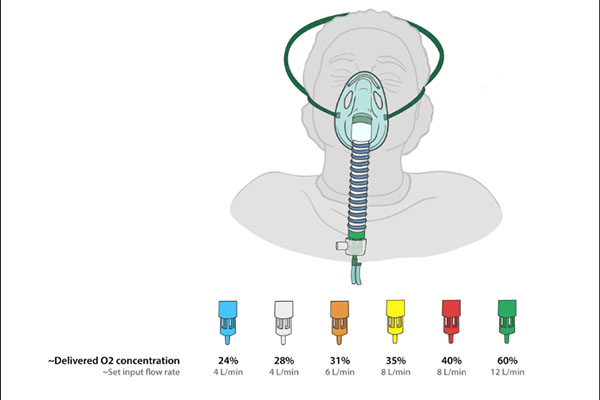

Valves of different colors correspond to specific oxygen concentrations (such as blue for 24%, white for 28%).
Precise oxygen delivery is achieved by adjusting the mixture ratio of air and oxygen.
Oxygen interface: connect to the oxygen source (flow meter).
Adjustable headband: fixes the mask but allows the patient to talk or cough.
Product Gallery
Product Parameters
| Product Code | Size |
| VM0107 | XL |
| VM0207 | L |
| VM0307 | M |
| VM0407 | S |
