Disposable Endoscope Stone Extraction Basket

hot
  • Convenient and efficient operation
  • High safety
  • Good stone picking effect

Application Department

Gastroenterology,Urology Department,respiratory system

Leave A MessageLive Chat

Product Introduction

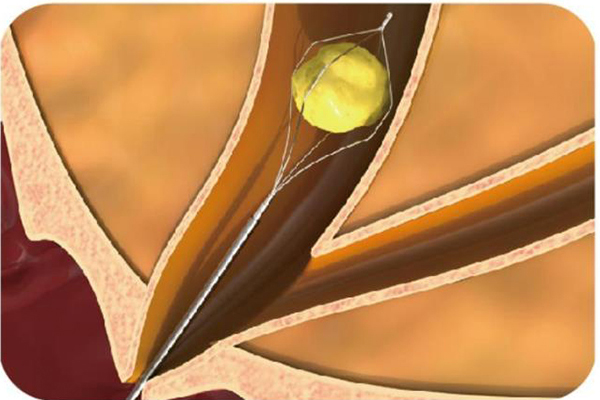

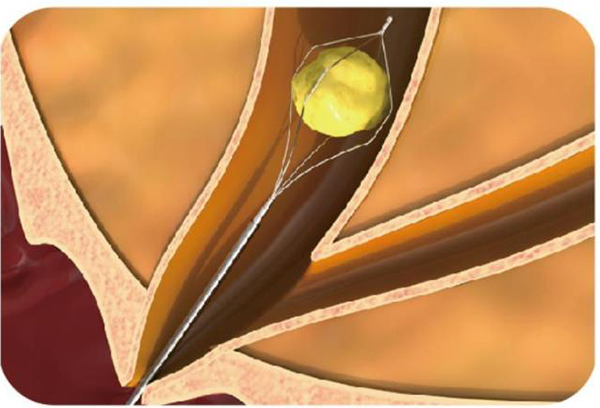

When performing endoscopic surgery, the doctor first inserts the endoscope into the patient's body, finds the location of the stone, and then inserts the stone retrieval basket through the working channel of the endoscope. After reaching the site of the stone, open the basket by operating the handle, cover the stone, tighten the basket, firmly fix the stone in the basket, and finally remove the stone from the body together with the endoscope.

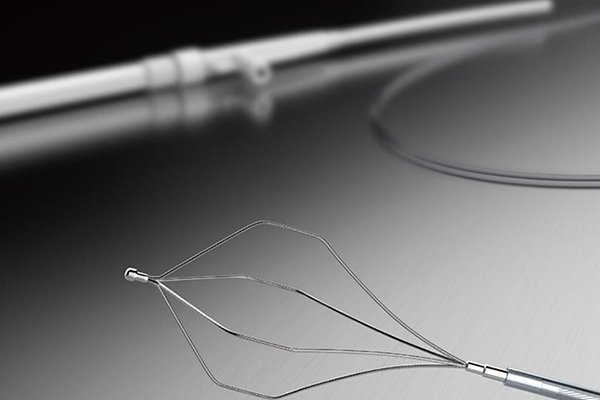

Disposable Endoscope Stone Extraction Basket

USAGE:

Disposable Endoscope Stone Extraction Basket Usage


lt is used for removal of gallstone in biliary duct,or forgein matters in upper and lower digestivetract.


FEATURES:

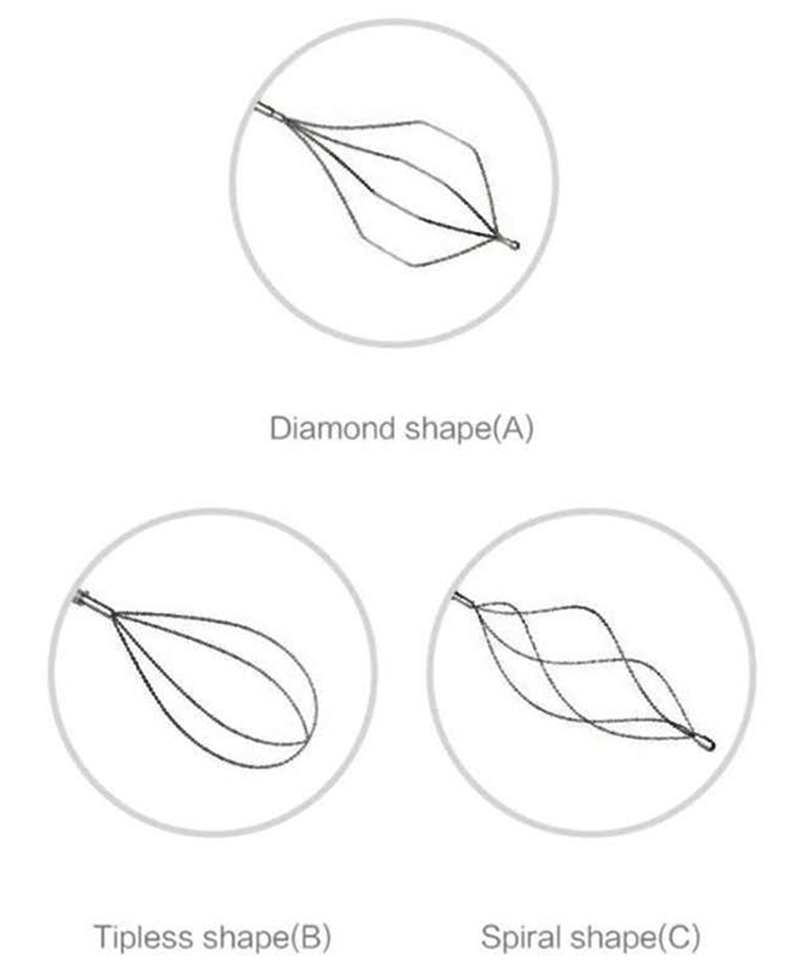

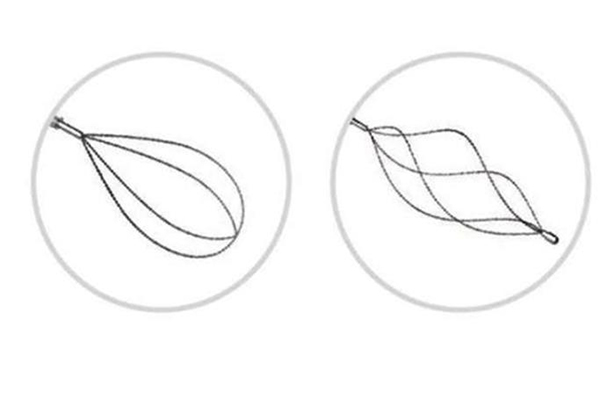

Disposable Endoscope Stone Extraction Basket type


lnnovational handle design, with functions of push, pull and rotation,easier to grasp gallstone and foreign body.

Convenient to inject contrast medium with injection port on handle.

Made by advanced alloyed materials, ensures good shape reten-tion even after difficult stone removal.

Accept customization, can meet different requirements.

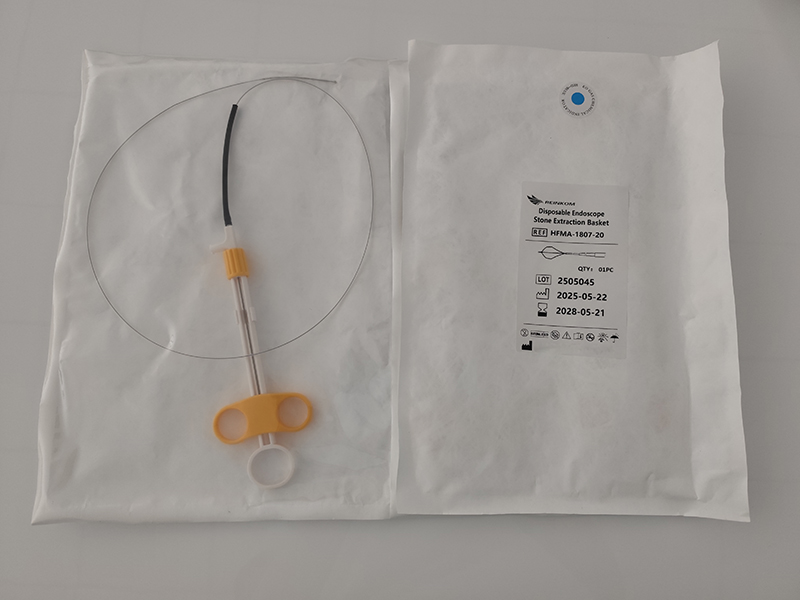

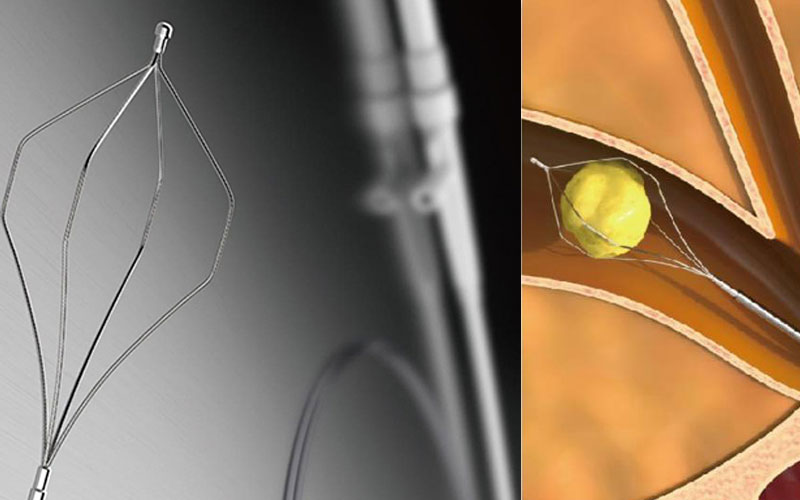

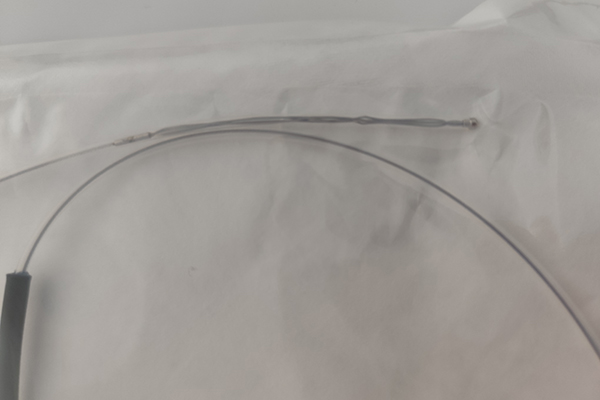

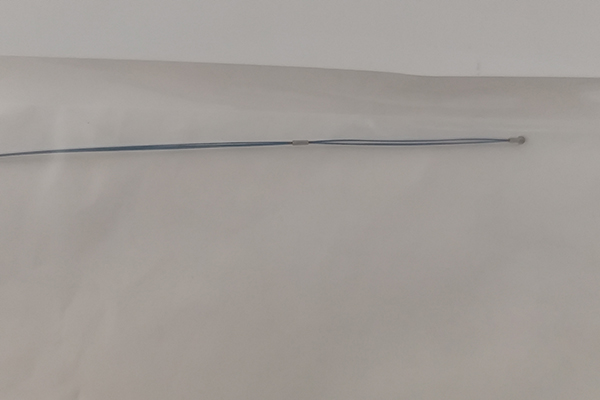

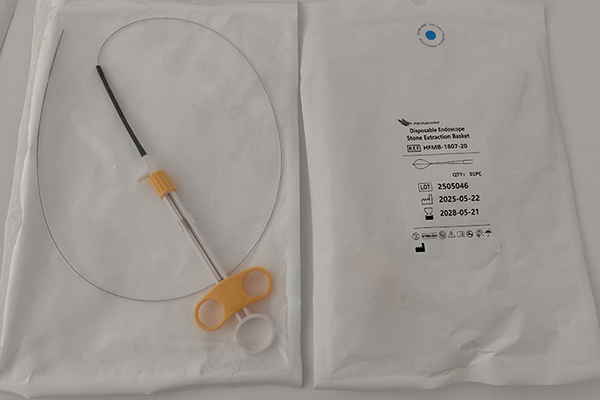

Product Gallery

Product Parameters

Model

O.D.(mm)

Length(mm)

Basket Width

Endoscopic Channel

Characteristics

HFM-1807-15

1.8

700

15

30

Diamond Shape

HFM-1807-20

20

40

HFM-2416-20

2.4

1600

20

40

HFM-2416-30

30

60

HFM-2419-20

2.4

1900

20

40

HFM-2419-30

30

60

HFM-1807-15

1.8

700

15

30

Tipless Shape

HFM-1807-20

20

40

HFM-2416-20

2.4

1600

20

40

HFM-2416-30

30

60

HFM-2419-20

1900

20

40

HFM-2419-30

30

60

HFM-1807-15

1.8

700

15

30

Spiral Shape

HFM-1807-20

20

40

HFM-2416-20

2.4

1600

20

40

HFM-2416-30

30

60

HFM-2419-20

1900

20

40

HFM-2419-30

30

60
