Reinkom Medical Instruments Co., Ltd
focused on disposable surgical medical instruments
Disposable Central Venous Catheter Kit(CVC Kit)
- Avoid cross infection and reduce the risk of injury
- Complete components, easy to operate
- Convenient monitoring and able to establish effective pathways
- Reduce pain and improve quality of life
Application Department
Vascular Department, General Surgery Department
Leave A MessageLive ChatProduct Introduction
The central venous catheter(CVC)is a long,soft,thin,hollow tubeplaced into a large vein in the neck (internal jugular vein),chest(subclavian vein)or groin(femoral vein).CVC is intended to provideshort-term (≤30 days)central venous channel for treatment of patients.

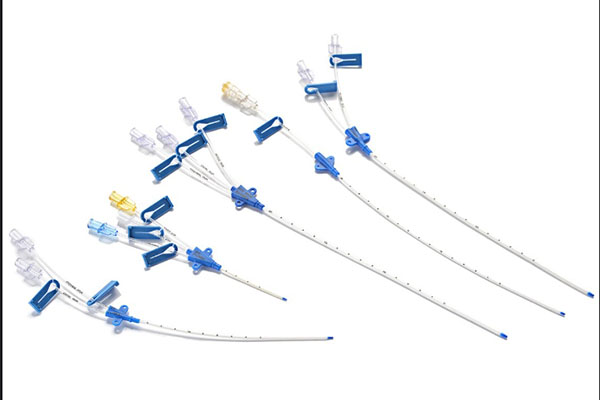

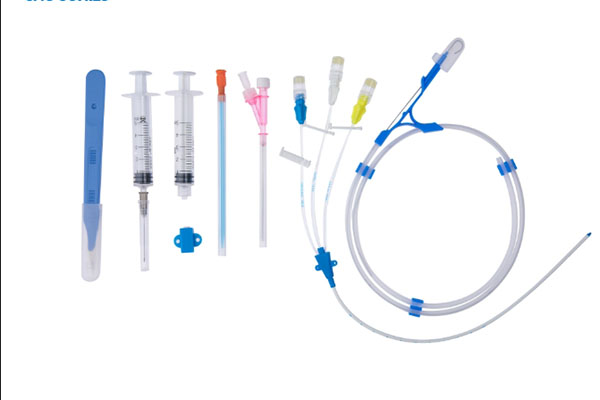

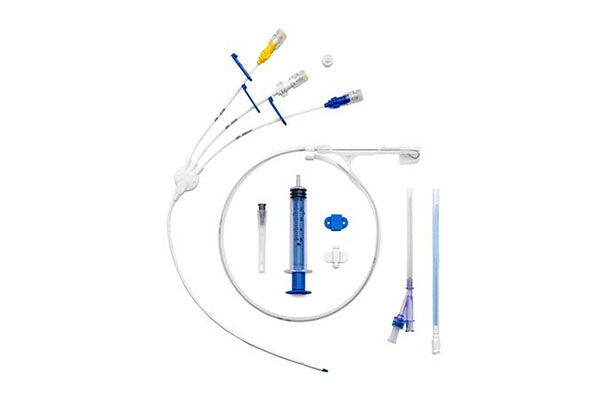

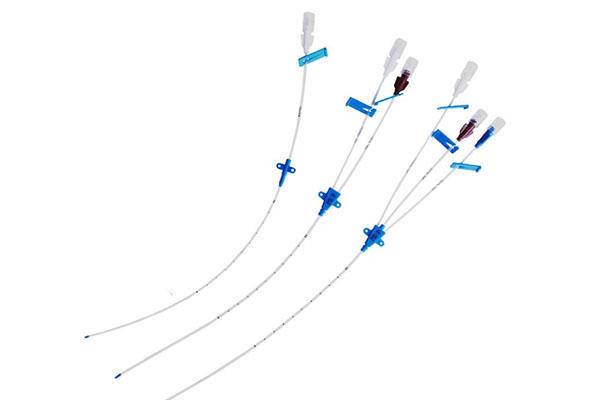

Product Gallery
Product Parameters
| Specification | Size | Catheter0D(mm) | Dilator oD(mm) | Catheter Length[cm) |
| Single Lumen | 20Ga | 1.15 | 1.70 | 8,10,13,16,20,30 |
| 18Ga | 1.40 | 1.70 | ||
| 16Ga | 1.70 | 2.00 | ||
| 14Ga | 2.00 | 2.70 | ||
| Double Lumen | 4Fr | 1.40 | 1.70 | |
| 5Fr | 1.70 | 2.00 | ||
| 7Fr | 2.40 | 2.70 | ||
| Triple Lumen | 4.5Fr | 1.50 | 1.70 | |
| 5Fr | 1.70 | 2.00 | ||
| 5.5Fr | 1.85 | 2.00 | ||
| 7Fr | 2.40 | 2.70 |

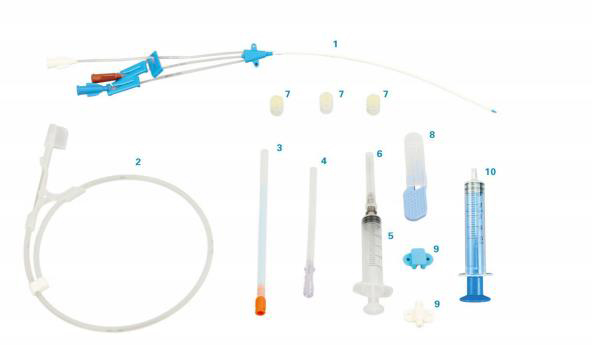

| No. | components | Quantity |
| 1 | Central Venous Catheter | 1 |
| 2 | Guide Wire | 1 |
| 3 | Vessel Dilator | 1 |
| 4 | Introducer Needle 18Ga | 1 |
| 5 | Syringe | 1 |
| 6 | Needle 7# | 1 |
| 7 | Heparin Cap | 3 |
| 8 | Scalpel | 1 |
| 9 | Catheter Holder | 2 |
| 10 | Introducer Syringe | 1 |
