Reusable Digital Flexible Rhinolaryngoscope
- High-definition digital imaging
- Flexible operation, thorough inspection
- Economical and efficient, environmentally friendly and sustainable
- Clear visibility, minimal pain, affordable, and fully functional
Application Department
ENT
Leave A MessageLive ChatProduct Introduction

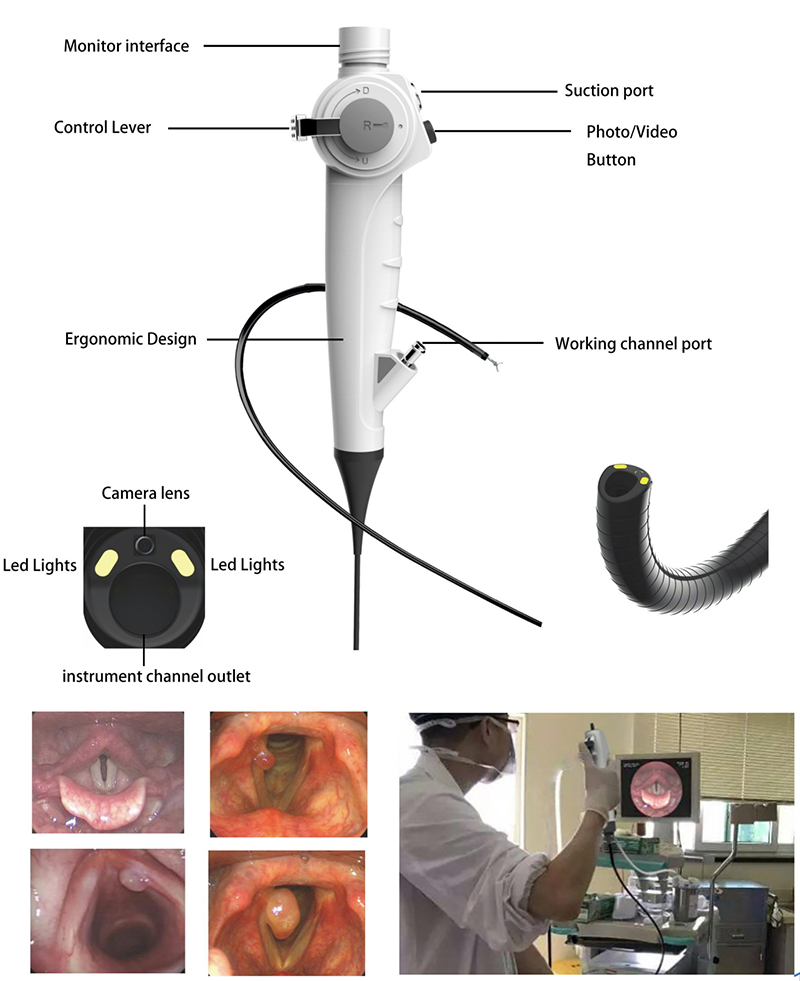

The reusable digital flexible nasopharyngoscope is a breakthrough endoscopic technology in modern otolaryngology. It combines high-resolution digital imaging with a highly flexible endoscope, designed for comfortable and clear observation of deep and narrow cavities such as the nasal cavity, nasopharynx, larynx, and hypopharynx.

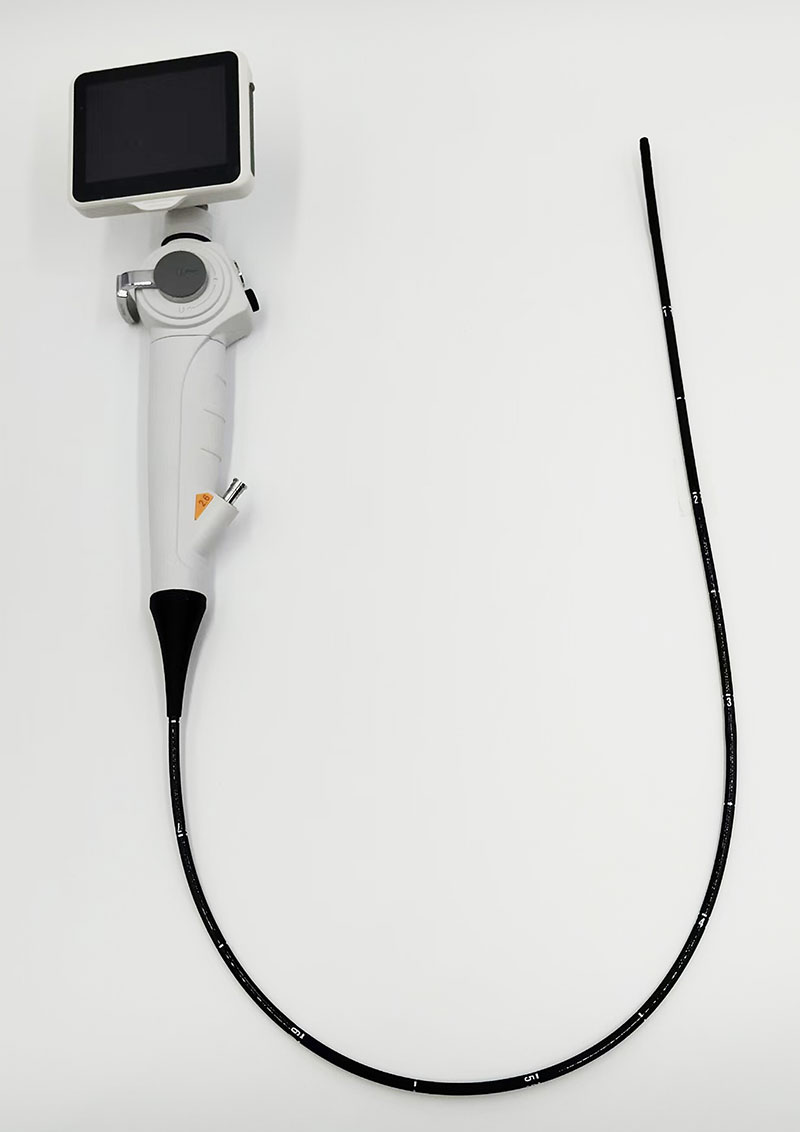

Model:RK-VL-02-3.5
Screen Size: 3.5"lpS
ScreenResolution:640*480
External Interface:TYPE-C, MINI HDMl
Screen Rotation Angle: Up:160, Down 30
Design: PortableBattery:2000 mAh
Battery Voltage: 3.7V

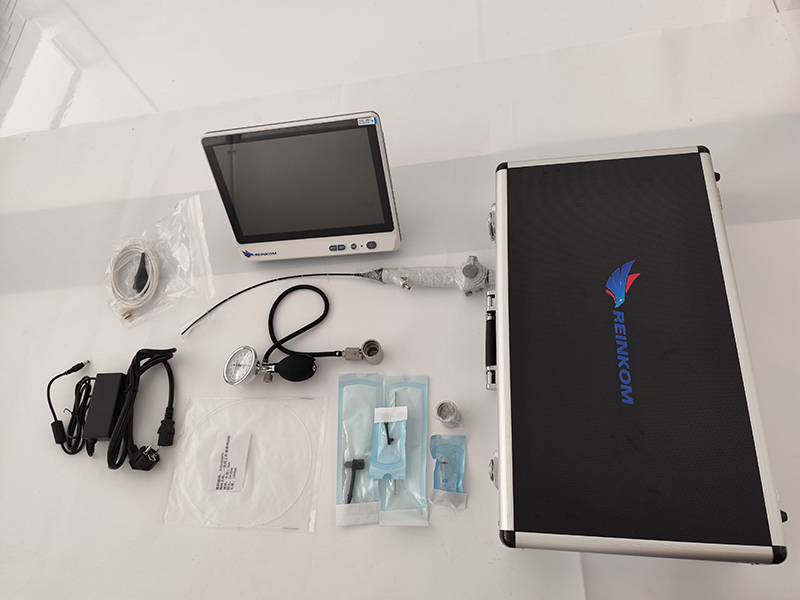

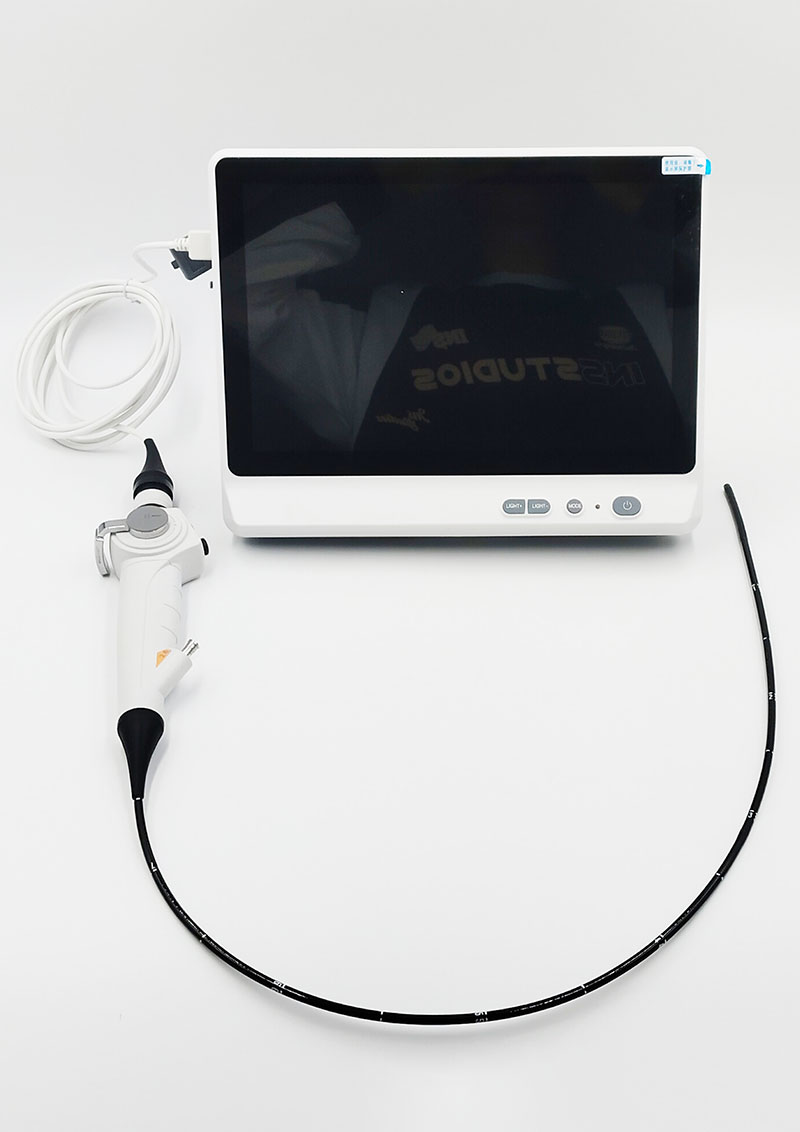

Model:RK-VL-12
Screen Size: 12.1"
Resolution:1280*800
External Interface: TYPE-C, HDMl output,Three-phase power interface
Screen type: Capacitive touch screen
Function: white balance, brightness adjustment, Photo and video recording

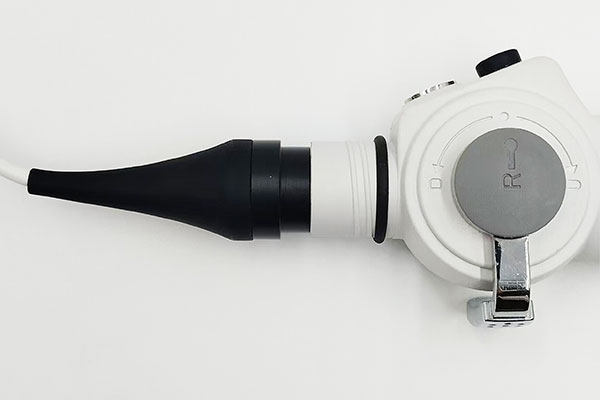

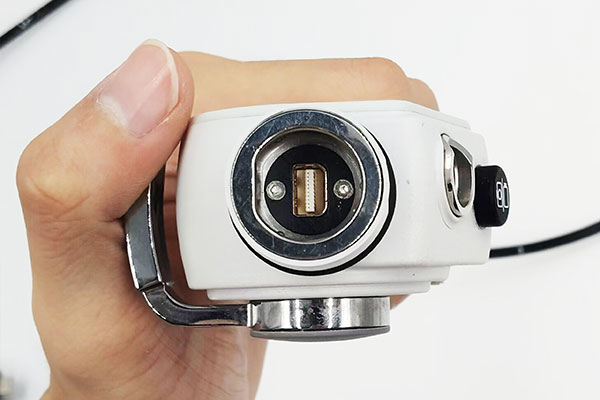

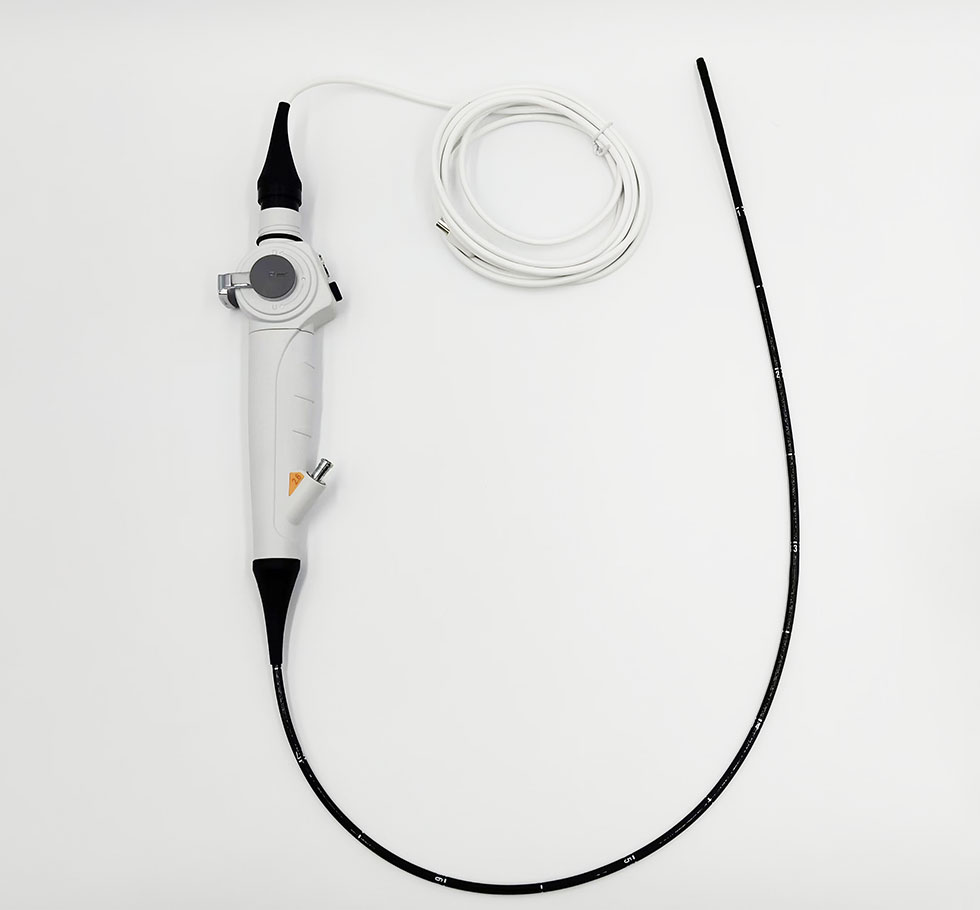

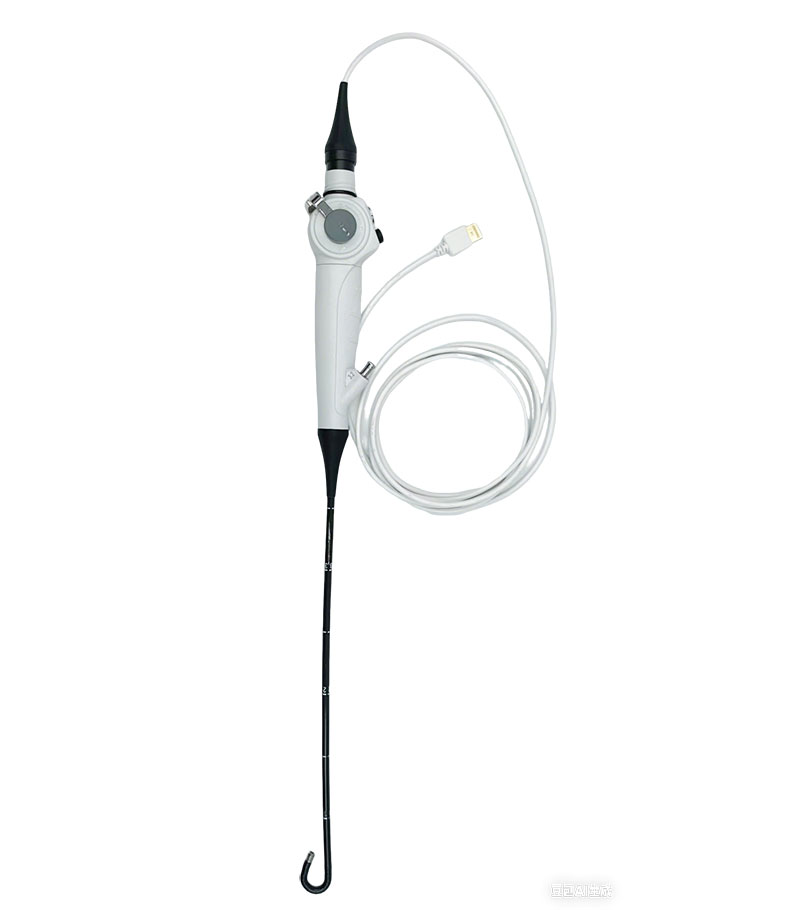

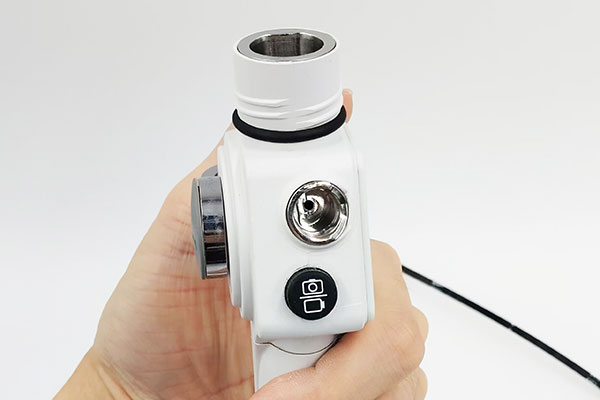

Product Gallery
Product Parameters
| Optical system | |
| Field of View | 120° |
| Direction of View | Forward viewing |
| Depth of Field | 5-50mm |
| Light Source | LED |
| Insertion section | |||
| 160K pixels series (compatible Processor:RK-VL-12) | |||
| Model | RK-RH2812 | RK-RH3818 | RK-RH4826 |
| Insertion Tube Outer Diameter | 2.8mm | 3.8mm | 4.8mm |
| Working Channel inner Diameter | 1.2mm | 1.8mm | 2.6mm |
| Resolution | 400*400 | ||
| 1.0 Megapixels series (USB Output,compatible with cellphone,tablet, computer,etc.) | |||
| Model | RK-RH3800 | RK-RH4816 | |
| Insertion Tube Outer Diameter | 3.8mm | 4.8mm | |
| Working Channel inner Diameter | 0mm | 1.6mm | |
| Resolution | 1280*720 | ||

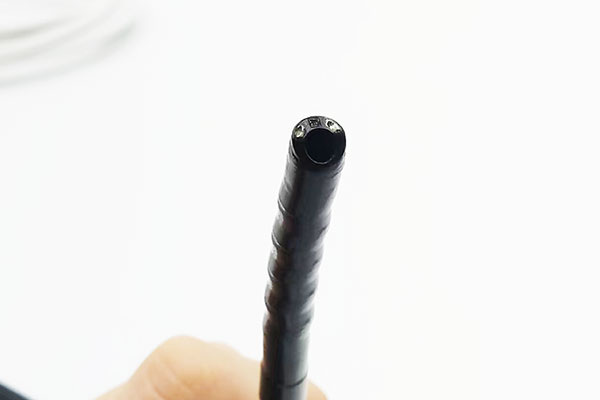

| Bending Section | |||
| Deflection Angle | Up 180°,Down180° | ||
| Working Length | 350mm | ||
