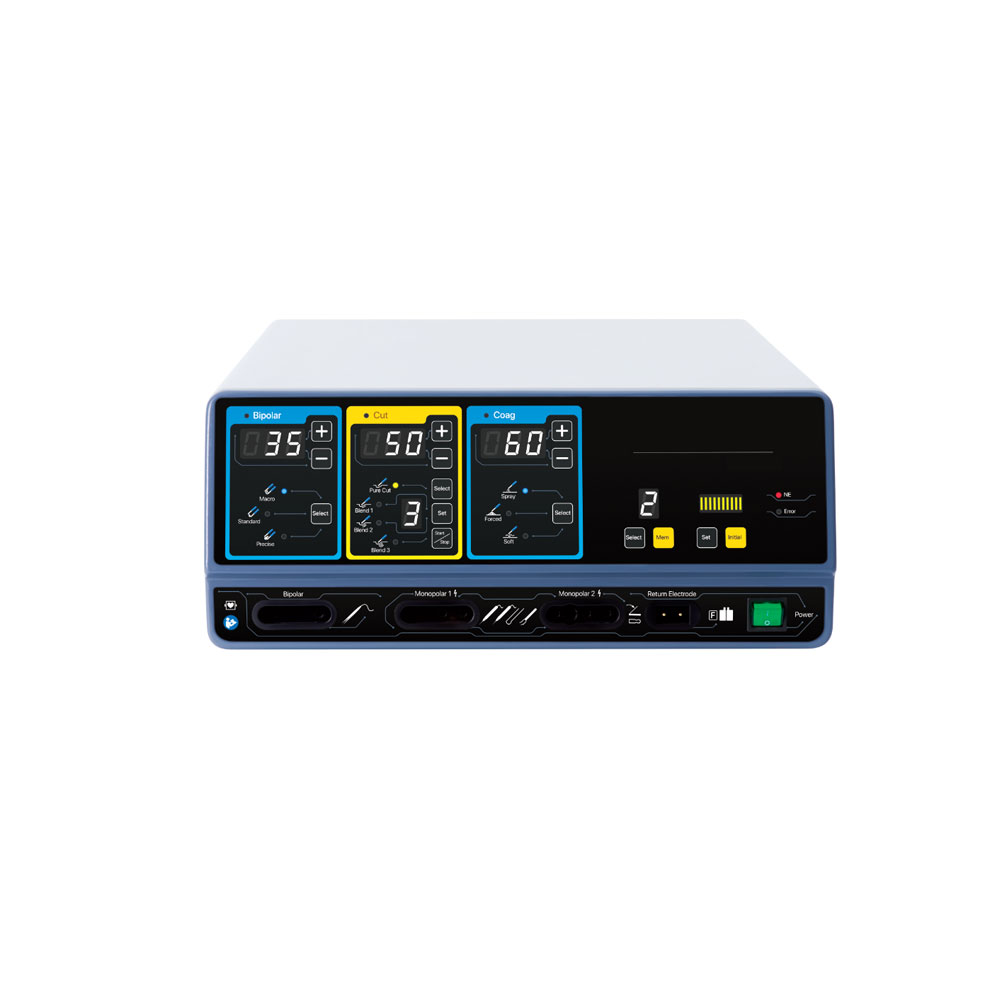

Product Introduction
Main Feature
– Two Monopolar Output Ports
– 4 Monopolar Cut: Pure Cut, Blend 1、2、3
– 3 Coag: Spray Coag, Forced Coag, and Soft Coag
– 3 Bipolar Output: Macro, Standard, Precise
– CQM Contact Quality Monitoring System
– Simultaneous Cut and Coag
– Electrosurgical Pens and Foot Switch Control
– Recently Mode, Power and Other Parameters
– 9 Sets of Memory Modes
– Quick Adjustment of Power and Volume
– Cut and Coag in an Intermittent Manner
Application
For Endoscopy, Gastroenterology, Gynecology, Urology, Pediatrics and Other Departments.
Product Gallery
Product Parameters
| Mode | Max Output Power(W) | Load Impedance(Ω) | Modulation Frequency(kHz) | Max Output Voltage（V） | Crest Factor | ||
| Monopolar | Cut | Pure Cut | 300 | 500 | --- | 1300 | 1.8 |
| Blend 1 | 250 | 500 | 20 | 1400 | 2.0 | ||
| Blend 2 | 200 | 500 | 20 | 1300 | 2.0 | ||
| Blend 3 | 150 | 500 | 20 | 1400 | 1.9 | ||
| Coag | Spray | 120 | 500 | 12-24 | 4800 | 6.3 | |
| Forced | 120 | 500 | 25 | 4800 | 6.2 | ||
| Soft | 120 | 500 | 20 | 1000 | 2.0 | ||
| Bipolar | Macro | 150 | 100 | --- | 500 | 1.9 | |
| Standard | 100 | 100 | 20 | 700 | 1.9 | ||
| Fine | 50 | 100 | 20 | 400 | 1.9 | ||
